HIGH QUALITY PERFORMANCE, DURABILITY AND RELIABILITY
Zoncare M5 is a high-quality color Doppler ultrasound scanner. The device is distinguished by modern design and compact construction, which makes the device portable and allows for easy portability and use, for example, in smaller offices. Zoncare M5 offers the user enhanced workflow functions, which greatly speeds up the work of hospital or clinic staff. In addition, exceptional image quality and a wide range of imaging modes and functions ensure accurate diagnosis.
The image obtained and processed during the examination of the patient can be stored and viewed on a USB mass storage device or on a DICOM server.
The device has a 12-inch high-resolution medical LCD monitor that can be tilted from 0 ° ~ 90 °. Just grab the top and bottom of the monitor with two hands and adjust the tilt of the monitor as needed.
The camera works with peripheral devices via the USB connector.
DETAILS:
- 12 inch high resolution medical LCD monitor
- adjusting the degree of tilt of the screen
- keyboard shortcuts and function keys
- two activated transducer connectors
- noise suppression and image smoothing - used to enhance image contrast, image smoothing and noise reduction
- Dual-Split and Quad-Split display
- Qsave - initial parameter setting
- DICOM 3.0 printing and saving
- the ability to store and view images on a USB mass storage device or on a DICOM server
- multiple data transmission
- cooperation with external printers
- different types of probes
- possibility of using external power supply
- optional USB footswitch
- optional built-in battery
- optional customized trolley and suitcase
ADVANCED IMAGING TECHNOLOGIES:
- 2D
- Doppler
- color Doppler
- color M-Mode
- Pulse Doppler (PW)
- Continuous Wave Doppler (CW)
- Power Doppler Imaging (PDI)
- Directional Power Doppler Imaging (DPDI)
- High pulse repetition frequency (HPRF)
- trapezoidal imaging
- spatial imaging
- harmonic imaging
- synchronic Dual/Triplex
- automatic carotid IMT measurement
APPLICATION:
- abdominal cavity
- gynecology (including vaginal examinations)
- obstetrics
- cardiology
- small parts of the body (breasts, thyroid, etc.)
- urology
- musculoskeletal
- peripheral vessels

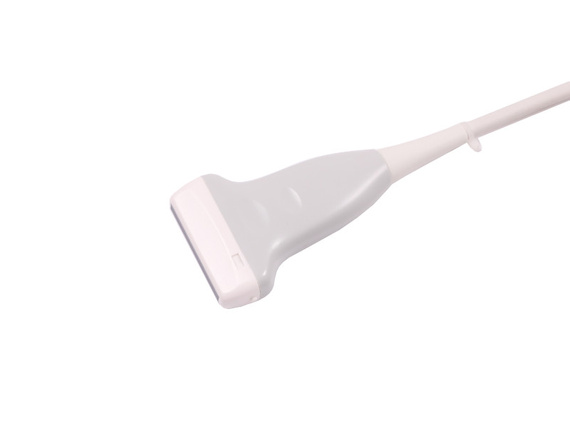

PROBE INCLUDED:
- A linear head - 1 piece
PROBE FEATURES:
- applications: neck, thyroid, nerves, superficial ultrasound, abdomen (pediatric patients), musculoskeletal, orthopedic, vascular
- Harmonic frequency: 4.0, 4.7, 5.3, 6.1 MHz
- base frequency: 5.0, 7.5, 12.0 MHz
- depth range: 20 ~ 280mm
PACKAGE CONTENT:
- ultrasound machine Zoncare M5
- TP40 linear head
- power cord and adapter
- instruction manual in Polish
| Weight: | 7,5 kg ,
12,1-calowy LCD |
| Size: | 470 * 370 * 380 mm |
| Guarantee: | aparat: 36 miesięcy ,
głowica: 24 miesiące |
| Power: | AC 100 V-240 V |
